400 TPH Gravity Gold Plant For Sale

The 400 tons per hour gravity gold concentrating plant is complete and was designed and procured in 2014. The plant is currently still new and unused. It was originally designed to process placer/alluvial deposits. All major components are on skids.

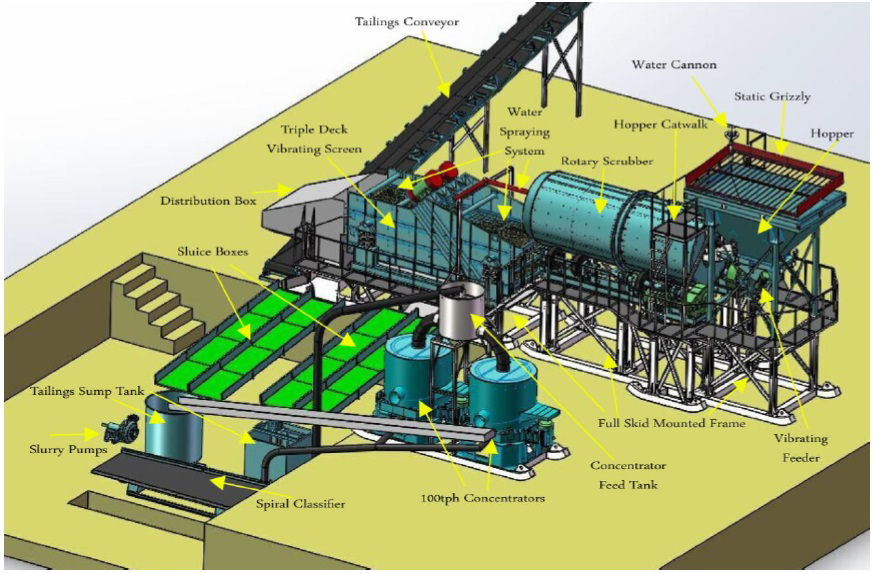

List of Components
1. HOPPER: 15t Capacity with Static Grizzly: 3m x 4m x 3m
2. VIBRATING FEEDER
3. ROTARY SCRUBBER: 5m x 2m with full rubber lining

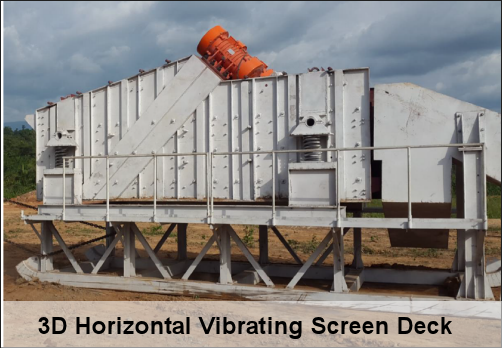

4. TRIPLE DECK VIBRATING SCREEN: 6m x 2.5m with 25mm / 12mm / 2mm screens
5. DISTRIBUTION BOX
6. SLUICE BOXES: Four x 12m long with Lockable Covers and full Gold carpet

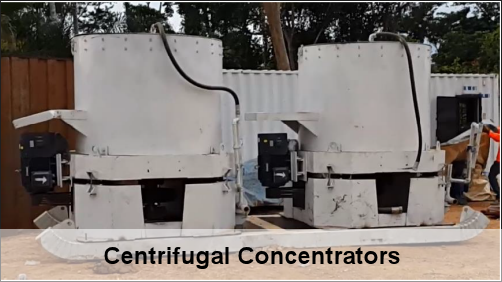

7. CENTRIFUGAL CONCENTRATORS: Two x 100tph
8. TAILINGS CONVEYOR: 12m x 1.2m
9. Full SKID MOUNTED FRAME with Catwalks and Platforms
10. WATER PUMP: 1 x 37kw Electric with Capacity up to 400,000L per hour e.a / 20m Head
11. SLURRY PUMP: 1 x 22kw Electric with Capacity up to 187,000L per hour e.a / 7m Head
12. 440Kw DIESEL GENERATOR

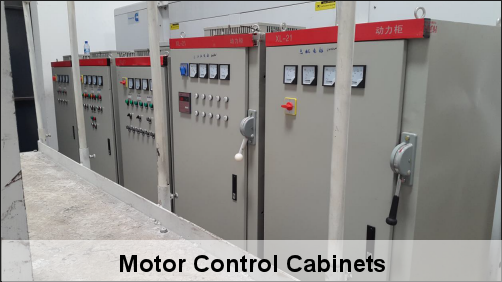

13. Full ELECTRICAL DISTRIBUTION PANEL SET
14. Full Set of WATER PIPES, FITTING & FIXTURES
15. Full Set of ELECTRICAL CABLES
16. Plant is currently located in Ghana.
